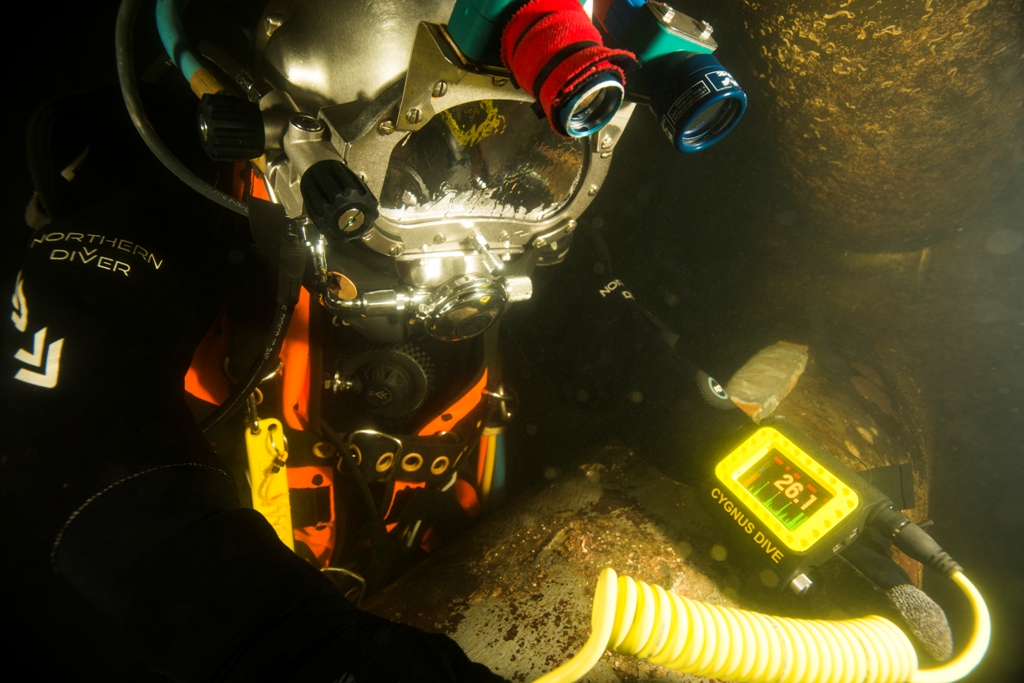

۲.۸quarter VGA colour AMOLED ۳۲۰ × ۲۴۰ pixels
Large clear thickness measurement (۱۵ mm high numbers ), viewable
from all angles
A-scan display with automatic X axis
Battery level, signal strength, probe type
velocity Measurement mode and units indication
|
Display |
Single ۳.۶V Li-ion ۸.۲ W battery
۱۱hours continuous measurement
Low battery warning 'alert' message
|
Battery |
Multiple-Echo (three back-wall echoes) using Single Crystal (zero-degree) probes automatically ignores surface coating and measures only metal thickness
Echo-Echo (two back-wall echos) using Twin Crystal probes
Single-Echo (first back-wall echo) using Twin Crystal probes
|
Measurement
Modes
|
In Multiple-Echo mode,allows measurement to be made through
thicker coatings of suitable materials of up to ۲۰ mm thick
|
Deep Coat
|
Twin Crystal probes
۲.۰MHz ۱۳ mm (for some plastics e.g. outfall pipes (T۲C
۵.۰MHZ ۸ mm (standard) (T۵B
|
Single Crystal probes
۲.۲۵Mhz ۱۳ mm (standard) (S۲C
۲.۲۵MHz ۱۹ mm (S۲D
۳.۵MHz ۱۳ mm (S۳C
۵.۰MHz ۶ mm (S۵C
|
Probes
|

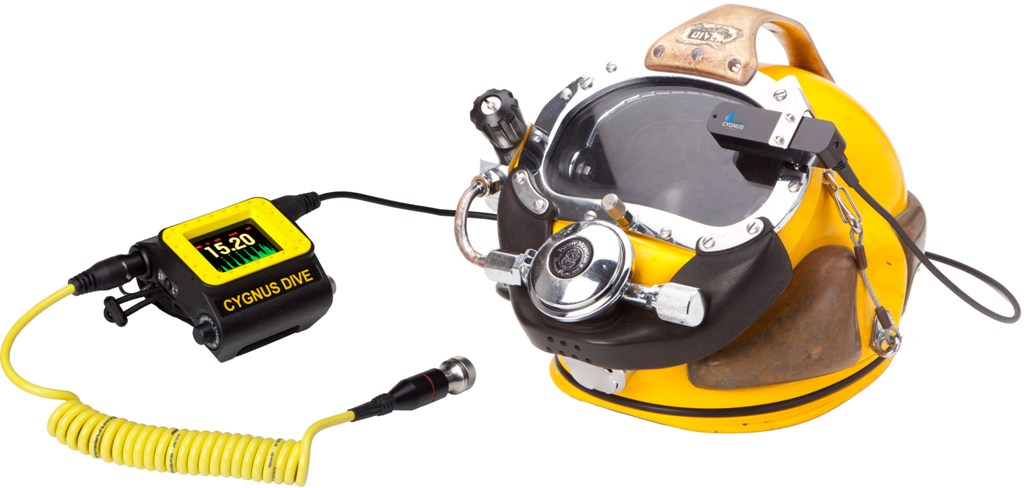

Double outer jacket in tough PU. Coloured yellow for easy Locations underwater. Coiled for easy of use. Fischer S۱۰۵ series connectors
|
Probe Cables
|
Single-Echo with Twin Crystals probes
۵.۰MHz=۲.۰ to ۱۰۰mm in steel
۲.۰MHz=۳.۰ to ۱۵۰ mm in steel
|
Echo-Echo with Twin Crystal probes
۵.۰MHz=۴.۰ to ۵۰mm in steel
۲.۰MHz=۶.۰ to ۵۰mm in steel
|
Multiple-Echo through coating
with Single Crystal probes
۲.۲۵MHz=۳.۰ to ۲۵۰ mm
۳.۵MHz=۲.۰ to ۱۵۰ mm
|
Measuremet
Ranges
|
Multiple-Echo with Single Crystal probes ۰.۱ mm or ۰.۰۵ mm
Single-Echo with Twin Crystal probes ۰.۱ mm or ۰.۰۱ mm
|
Measurement
Resolution
|
mm or inches
|
Measurement Units
|
Fully automatic probe zeroing for all probes types
|
Probe Zero
|
Automatic V-path correction for all Twin Crystal probes
|
V-path Correction
|
۲۰۰۰to ۹۰۰۰ m/s in ۱ m/s steps
|
Velocity Range
|
Twin channel ۷۰ V spike pulser
|
Pulser
|
۱۰MHz bandwidth, ۱۲۰ dB range, automatic TCG
۶۰MHz measurement time-base
|
Receiver
Amplifier
|
One-handed automatic logging of stable measurements
Capacity for up to ۵۰۰۰ points including ۶۴۰ point A-scan data
|
Data logging
|
RS-۴۸۵ single pair,half duplex for surface connection
|
Data Output
|
CygLink v۴ allows remote Logging and viewing of A-scan graphs
Survey and report generation to PDF file. Graphic analysis of data and statistical calculations Designed for Windows ۷ and Windows ۸
|
Computer
Software
|
| |
|
| |
|
